Functions supported:
Switching, toggling, dimming.
Controlling shutters, blinds, motor drivers (e.g., rolling doors, curtains).
Value setting and conversion.
Short press and long press recognition.
Step counting functionality.
Scene calling.
Force function (locking).
Thermostatic parameter control.
External inputs:
Two inputs located next to the KNX connector (rear side).
Programmable via ETS as digital or analog (NTC 10K sensor supported).

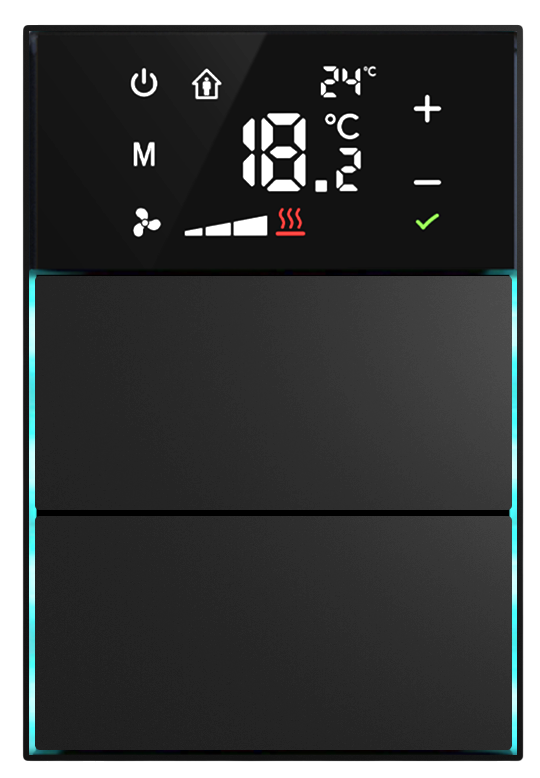

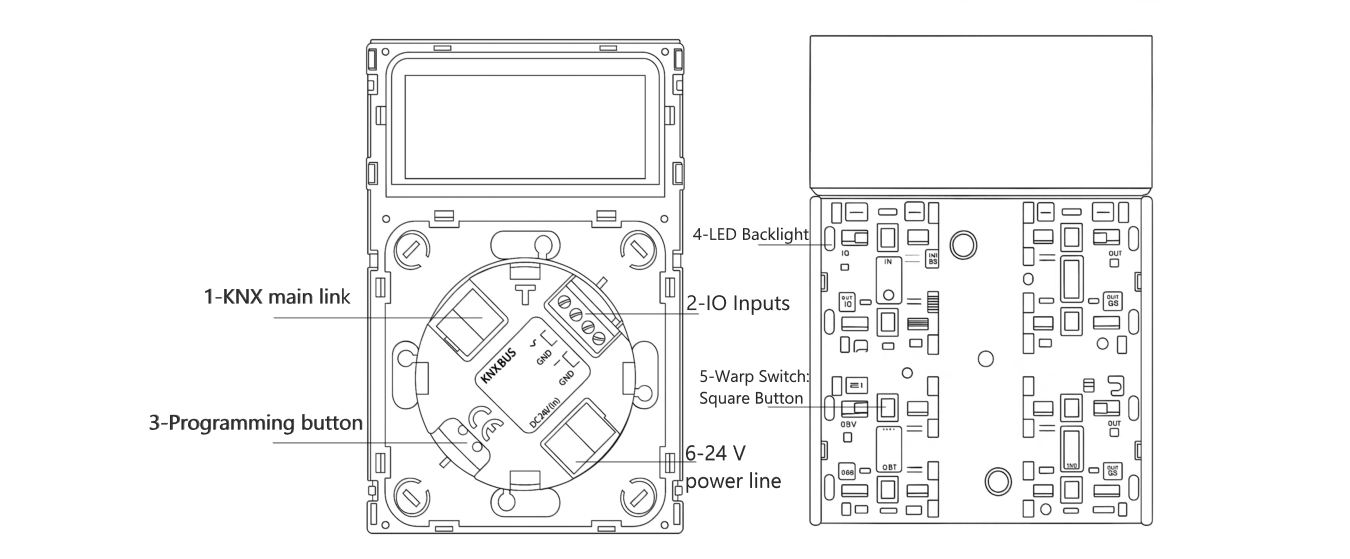

Touch button (3) used to switch between normal and programming modes.
Tilting switch (5) can control independent or grouped loads.
Programmable LED indicators and keypads per channel.
Programmable backlights used as state indicators or night lights.
Temperature and humidity sensors.
Temperature display in Fahrenheit or Celsius.
Mechanical Class: 3M2; Climate Class: 3K5 (according to EN 50491-2).
Red LED (5) indicates programming mode when lit.
Protection Class: IP20.
Pollution Degree: 2 (IEC 60664-1).
Product Addressing:
It is recommended to assign a KNX address before installing the rocker.
Once assigned, reprogramming does not require the programming button.
Programming and Operation:
Can enter programming mode by pressing the button on the back or pressing button 1 and 8 for 5 seconds.
The programming button and LEDs can be accessed from front or back.
Dimensions and Weight:
Dora Keypad: 140g (including frame), size: 86×86×9 mm.
Dora Room Controller: 200g (including frame), size: 86×127×9 mm.
Border thickness: 9 mm.
Package includes:
Device with KNX socket, installation support, and screw.
Standards & Compliance:
Complies with EC Low Voltage Directive (2014/35/EU).
EMC Directive (2014/30/EU).
Tested according to EN 50491-4-1.
KNX IT compliant.
Classified as e-waste at end of life.
Warranty void if opened illegally.
Installation instructions:

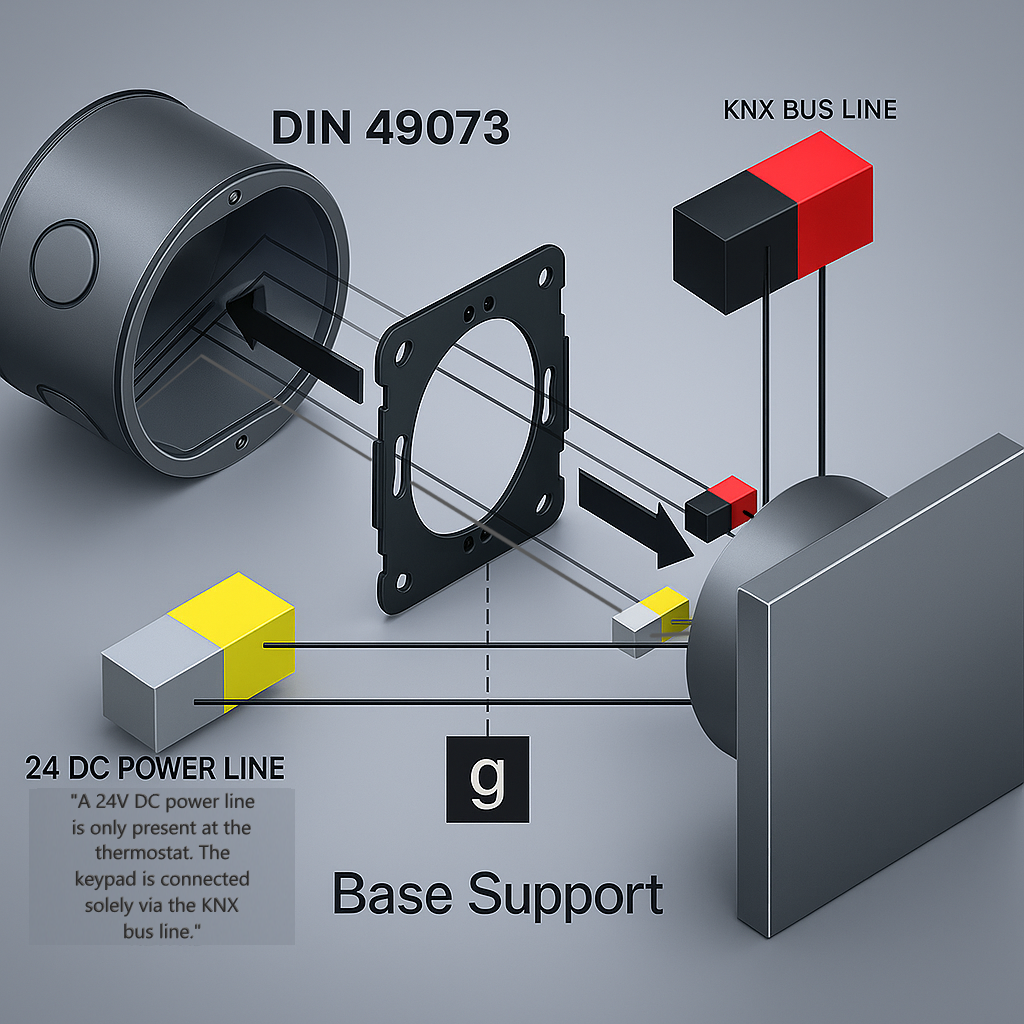

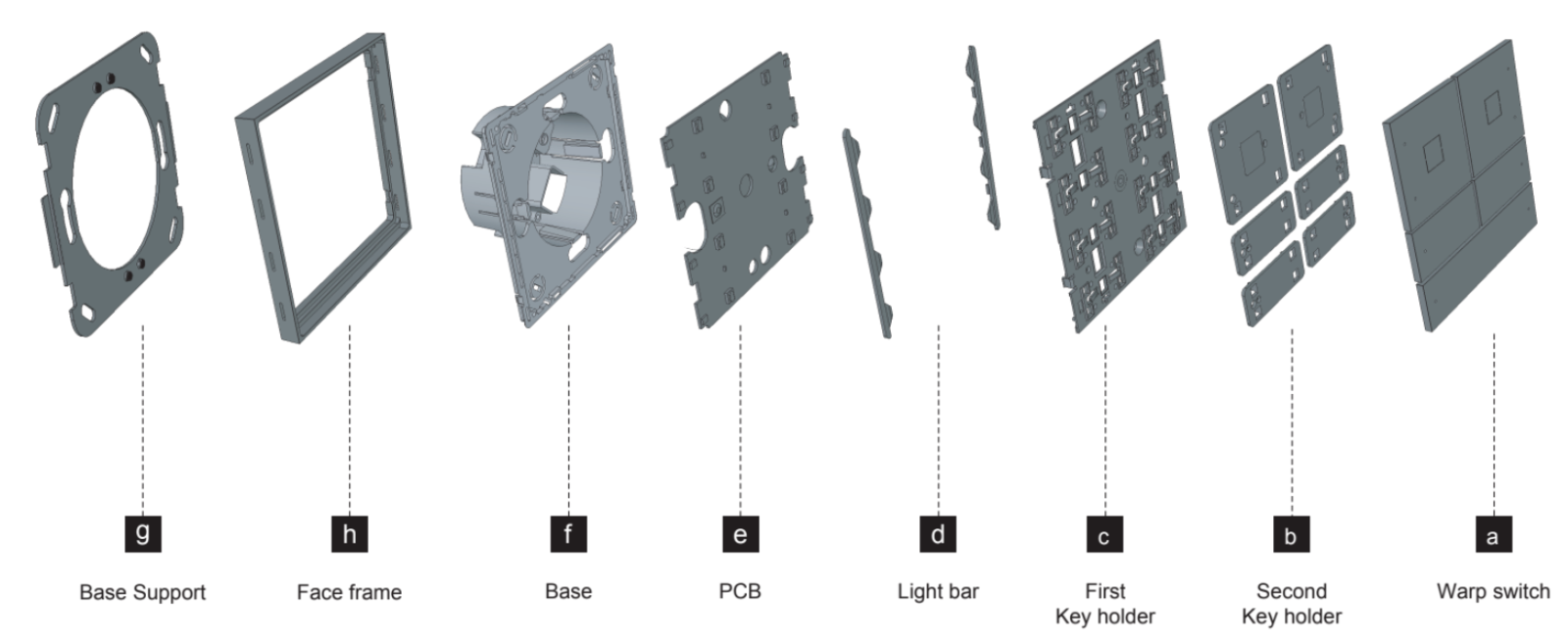

Fasten base bracket (g) to the wall box using screws.
Attach key holder (c) to base (f), insert light guide strip (d) between parts (b) and (d).
Insert face frame (h) and base holder (f) in sequence.
Connect KNX bus wires to terminal (preferably solid wire, 0.6–0.8mm diameter).
Exposed copper length: ~5mm.
Color coding: red = + (positive), black = - (negative).
Insert terminal into the back of the device.
Attach warp switch (a) above the product.
Safety instructions:
Power must be OFF during connection.
Only qualified personnel may install and configure.
Improper installation can cause short circuits or fire.
ETS software (version 4 or higher) is required for:
Configuration
Parameter setting
Debugging
Debugging Steps:
Complete all electrical connections.
Turn on KNX bus power.
Press programming button to enter programming mode (LED ON).
Use ETS to download physical address and configuration.
Download relevant application/product database from ETS.
Resetting the Device:
Reset returns device to factory state; deletes physical address and parameter settings.
To reset:
First uninstall product and address via ETS.
Then reset physical address and program settings via ETS tool.
To trigger reset, press and hold programming button while powering OFF/ON until LED lights up.
