MM-20-12-211

MODEL:

NightSky2

DEVICE DIMENSIONS:

108x92x64mm - DIN Rail -6DU

LIST PRICE:

207,77 €

MM CODE:

MM-20-12-211

PACK TYPE:

pcs

HS TYPE:

85371091

PACKING WEIGHT (Gr.):

320 gr

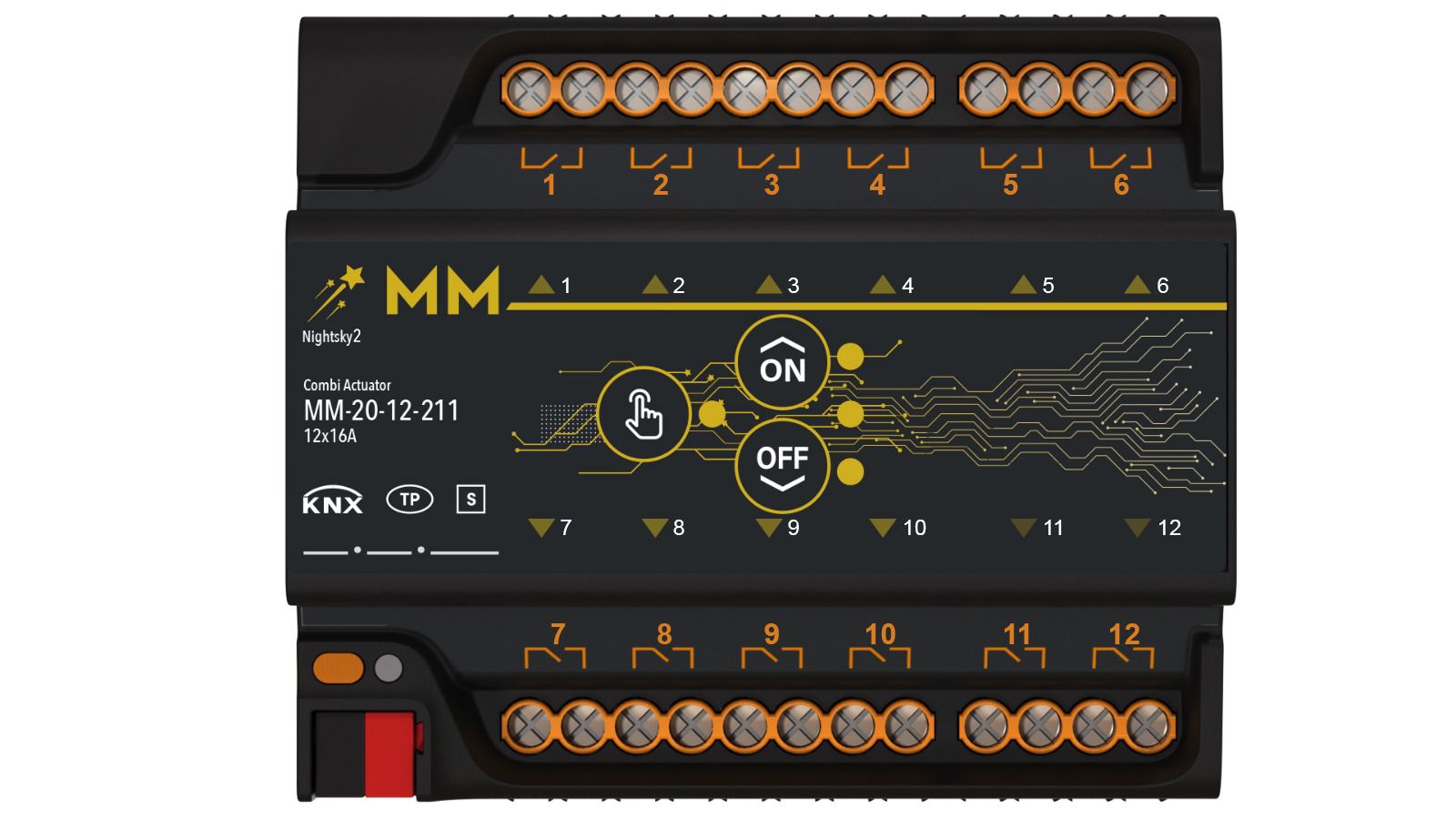

KNX Combo Actuator 12 Ch on-off, switching, blind/shutter, fcu, valve actuator 16A, Nightsky2 Serie *

Piece

I Want a Laser Icon

Add to Basket

MM-20-xx-211 is a KNX compatible automation device that offers different usage purposes together. Switch/Valve, Curtain/Blinds, 3-Point Motor and Fan Coil control operations can be done on a single device. There are models with 4, 8, 12, 16, 20 and 24 contact outputs. The connection table is shown at the top. Monitoring and Manual Control: All controls can be accessed with the keys on the device. Triangular LED indicators on the device show the contact status of the relevant output (consider whether the connection is normally open or closed).

MM-20-xx-211 is a KNX-compatible automation device designed to combine multiple application functions within a single unit. Switching, valve control, blind/shutter control, 3-point motor control, and fan coil control can all be handled through one device. The product family includes models with 4, 8, 12, 16, and 24 contact outputs. Each contact is equipped with an independently supplied latching relay rated up to 16A and capable of responding to inrush current demands. All models offer the same functional structure, while the number of available functions increases in proportion to the number of contacts.

Available in Data Sheet

Downloads

Data Sheet

ETS File

MM-20-12-211
