PIR MOTİON SENSORS
/
PIR Motion Sensors
MM1-50-WID-212-WH
MODEL:
white
DEVICE DIMENSIONS:
ø 78 mm
LIST PRICE:
147,46 €
MM CODE:
MM1-50-WID-212-WH
PACK TYPE:
pcs
HS TYPE:
85371091
PACKING WEIGHT (Gr.):
91

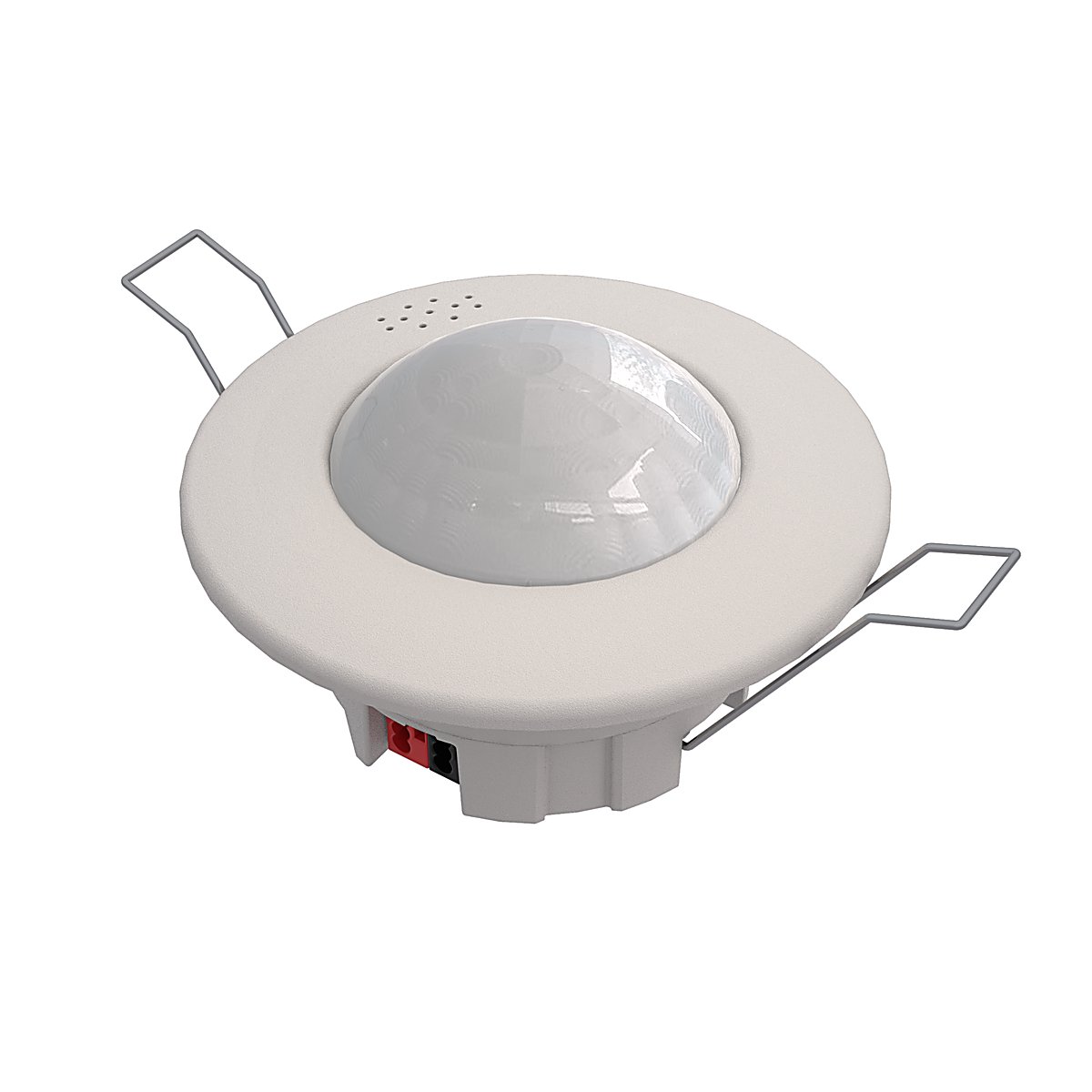

Multi Sensor Wide RTC PIR, brightness, Temp & Humidity, Room thermostat functions
Piece
  I Want a Laser Icon
Add to Basket
Please wait...
Description
Features
Wiring Diagram
Number of Functions
Multi Sensor Wide RTC PIR, brightness, Temp & Humidity, Room thermostat functions
MM1-50-21x series indoor presence and motion detectors offer ideal solutions for modern homes, commercial buildings, and many other applications. They save energy and increase user comfort by controlling lighting and HVAC systems based on motion or presence. Equipped with light, temperature, humidity, and air quality sensors, they monitor the environmental conditions and send information to the KNX bus for smarter indoor management.
Applications:Standard Version (MM1-50-211) Motion Detection, Fixed Light,HVAC, Light and Temperature Sensor Applications. Premium Version (MM1-50-212) RTC, Logical Applications, Humidity, Air Quality, Digital Input, Input/Output.
Installation: The flexible design suitable for both flush-mounted and surface-mounted installation meets different mounting requirements. External factors such as heat, light, humidity, liquids, and air currents should be considered in the installation areas. It can be installed in circular holes between 55-68mm (Maximum thickness 3cm). It can also be mounted to surfaces or junction boxes with separately ordered surface mounting brackets or junction box adapters.
• Thermostat Function: Measures room temperature and directly controls heating and cooling systems based on setpoints.
• Temperature Sensing: Continuously monitors ambient temperature for climate control and monitoring applications. • Humidity Sensing: Measures relative humidity levels to trigger ventilation or dehumidification scenarios.
• Air Quality Monitoring (VOC Sensor): Detects Volatile Organic Compounds (VOCs) to assess indoor air quality and enable interaction with ventilation systems.
• Motion Detection: Detects presence or movement within the monitored area to trigger lighting or other automation systems.
• Constant Light Control: Measures ambient light levels and automatically adjusts artificial lighting to maintain a target brightness level.
• HVAC Control: Enables integration with heating, ventilation, and air conditioning systems to support energy-efficient climate management.
• Brightness Detection: Measures ambient illuminance for scene control or to support logic-based automation.
• Logic Functions: Allows the creation of advanced automation scenarios using user-defined logic operations.
Available in data sheet
Available in data sheet
Downloads
Data Sheet
KNX File
Product Manual
DWG
